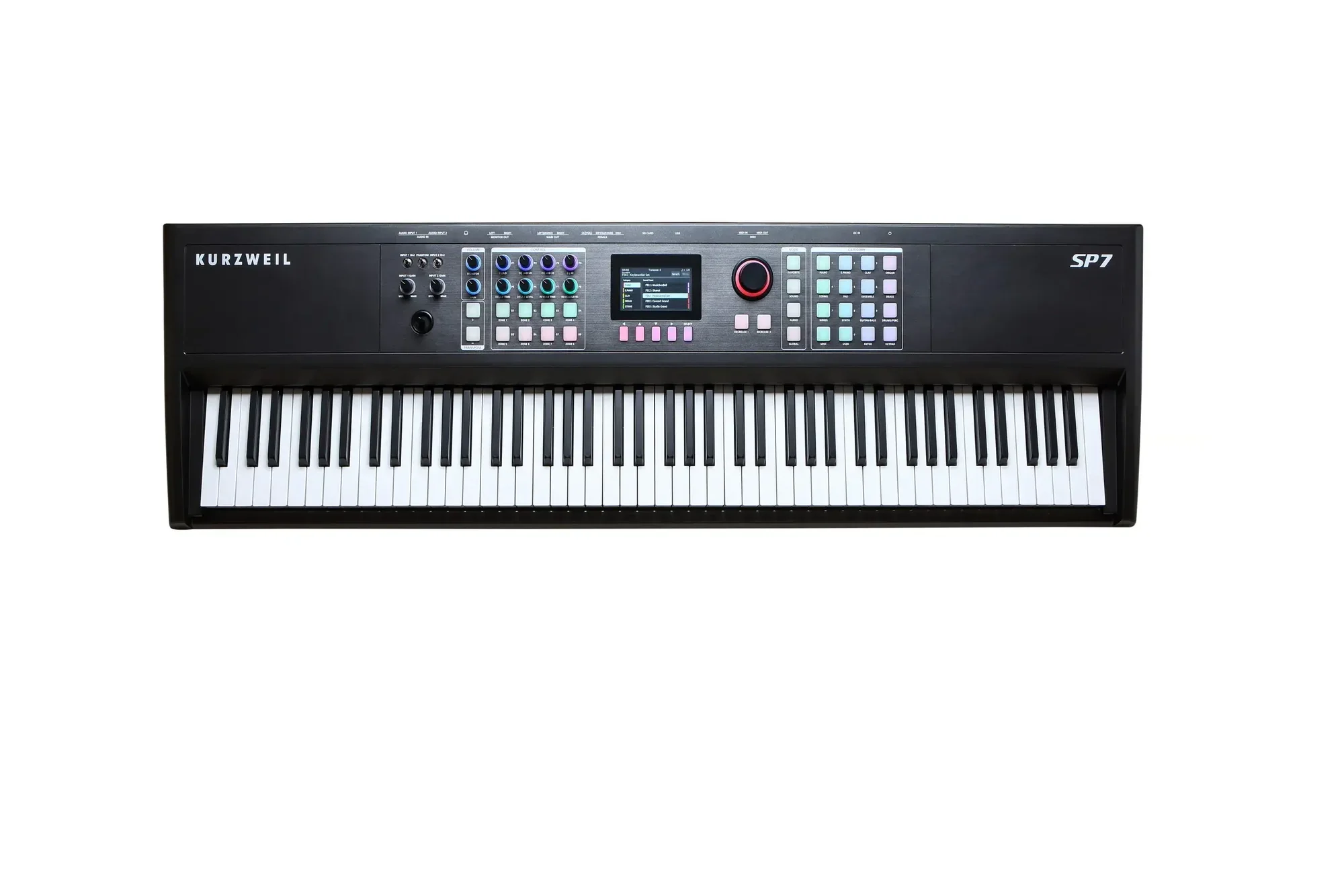

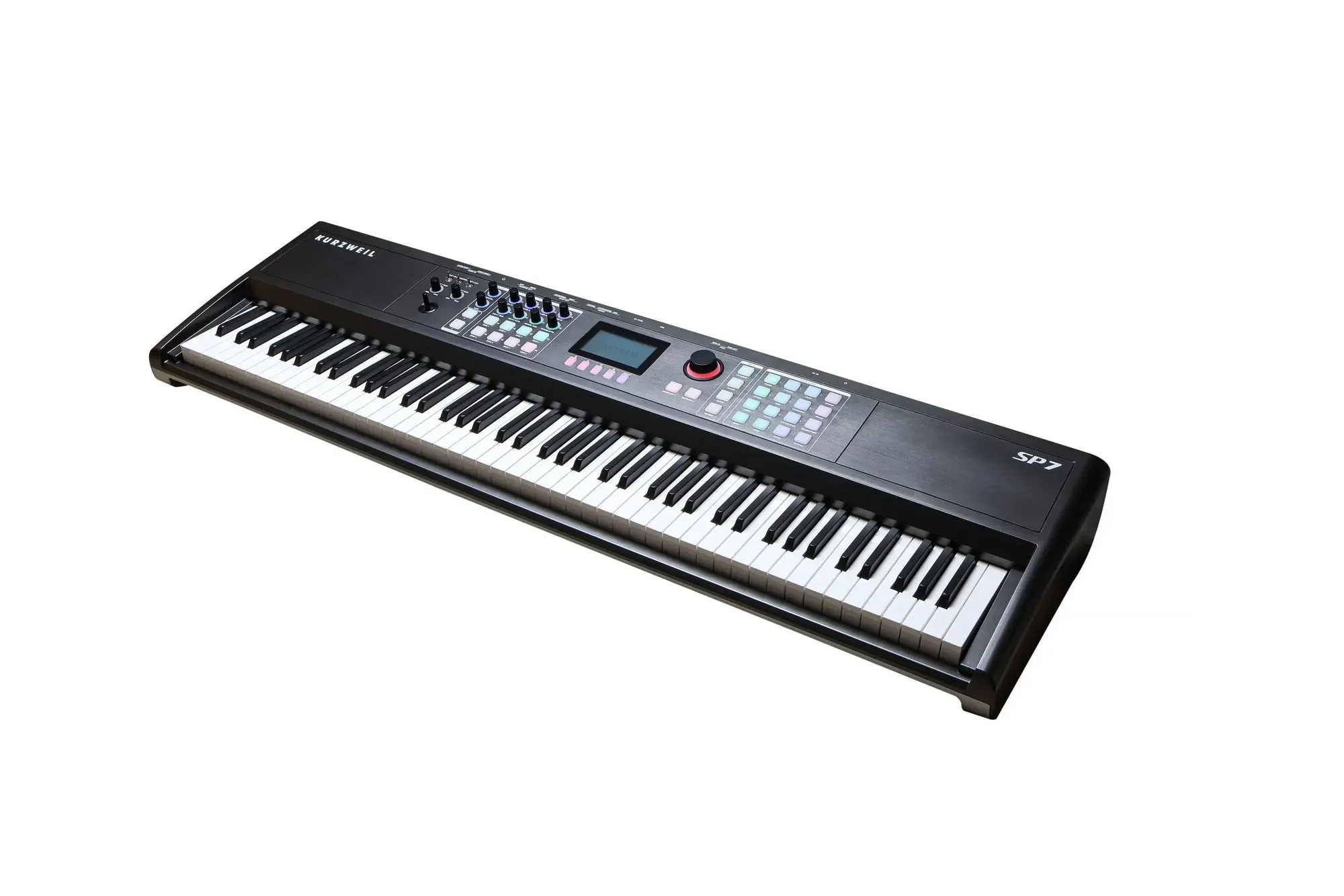

KURZWEIL SP7 LB STAGE PIANO, 88 KEY
Keyboard:
88-note, fully-weighted hammer-action with velocity sensitive keys
Display:

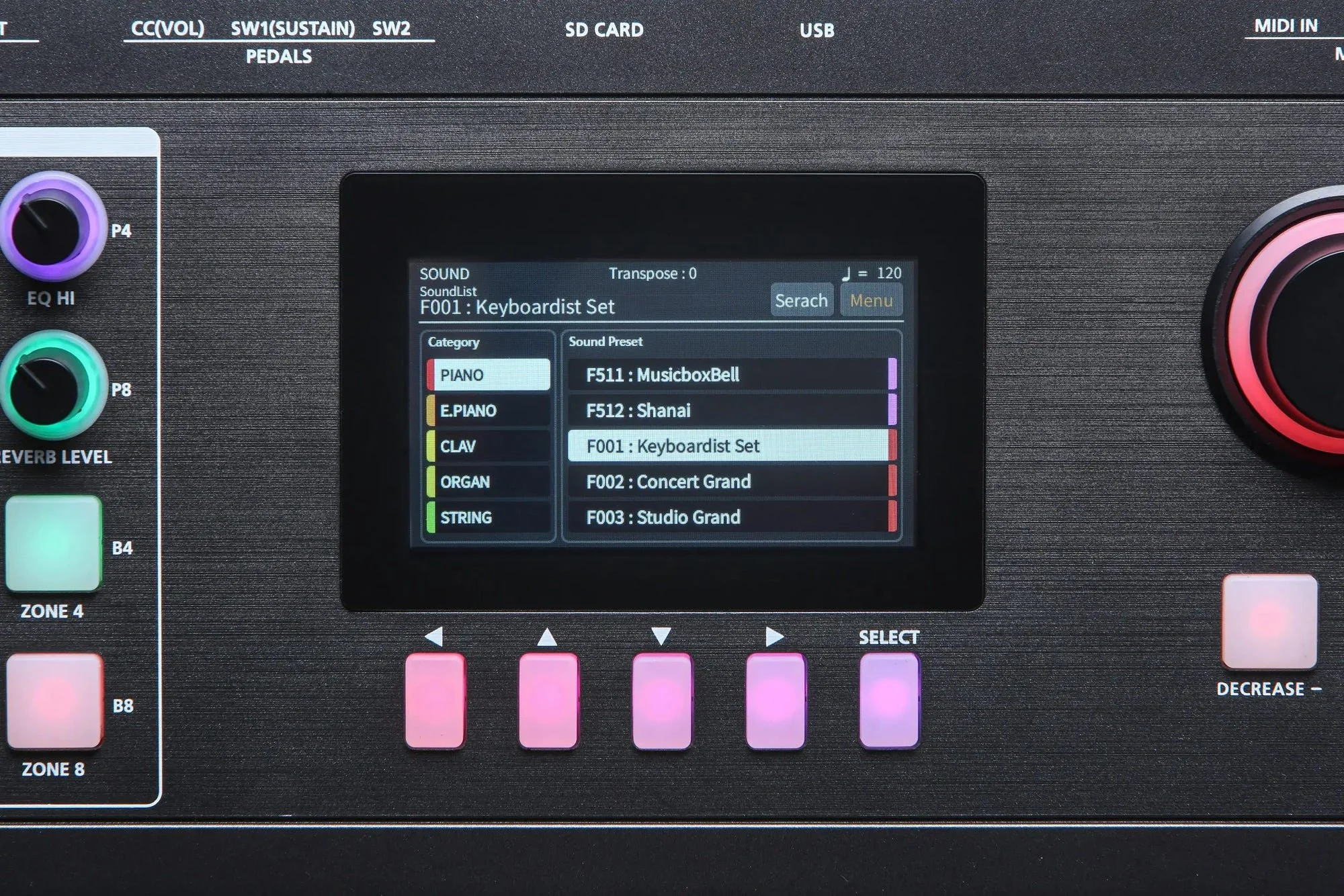

480 x 282 pixel, high resolution 4.3″ color LCD touch screen
Enclosure Material:
Lightweight reinforced plastic
Enclosure Color:
Black
Polyphony:
256
Multitimbral:
16 parts (one per MIDI channel)
Architecture:
A.T.S.T. – Authentic Timbre Synthesis Technology
Featuring fixed PCM subtractive with variable filter and 2x oversampling state variable 96 kHz filter
Factory Samples:
2 GB
Factory Programs:
301
Factory Multis:
512
User Multis:
128
Favorites:
64
Multi Zones:
16
General MIDI:
GM2
Piano String Resonance:
Yes
Piano Damper Resonance:
Yes
Master EQ:
4-Band
Aux FX Busses:
2
Insert Effects:
Reverb: 6 Algorithms
Modulation: BPM-Sync’d Delay, Chorus/Flanger, Rotary Speaker, Vibrato, Tremolo, Auto Wah-Wah
Dynamic: Compression, Noise Gate
Distortion: Dist/Ovd/Tube/Fuzz, Bit Crusher
EQ: 4-Band, Hi/Low Shelf, Peak/Notch, Hi/Low Pass
Vocal Pitch Correction:
Yes / Automatic
Vocal Harmony Generation:
4-Part

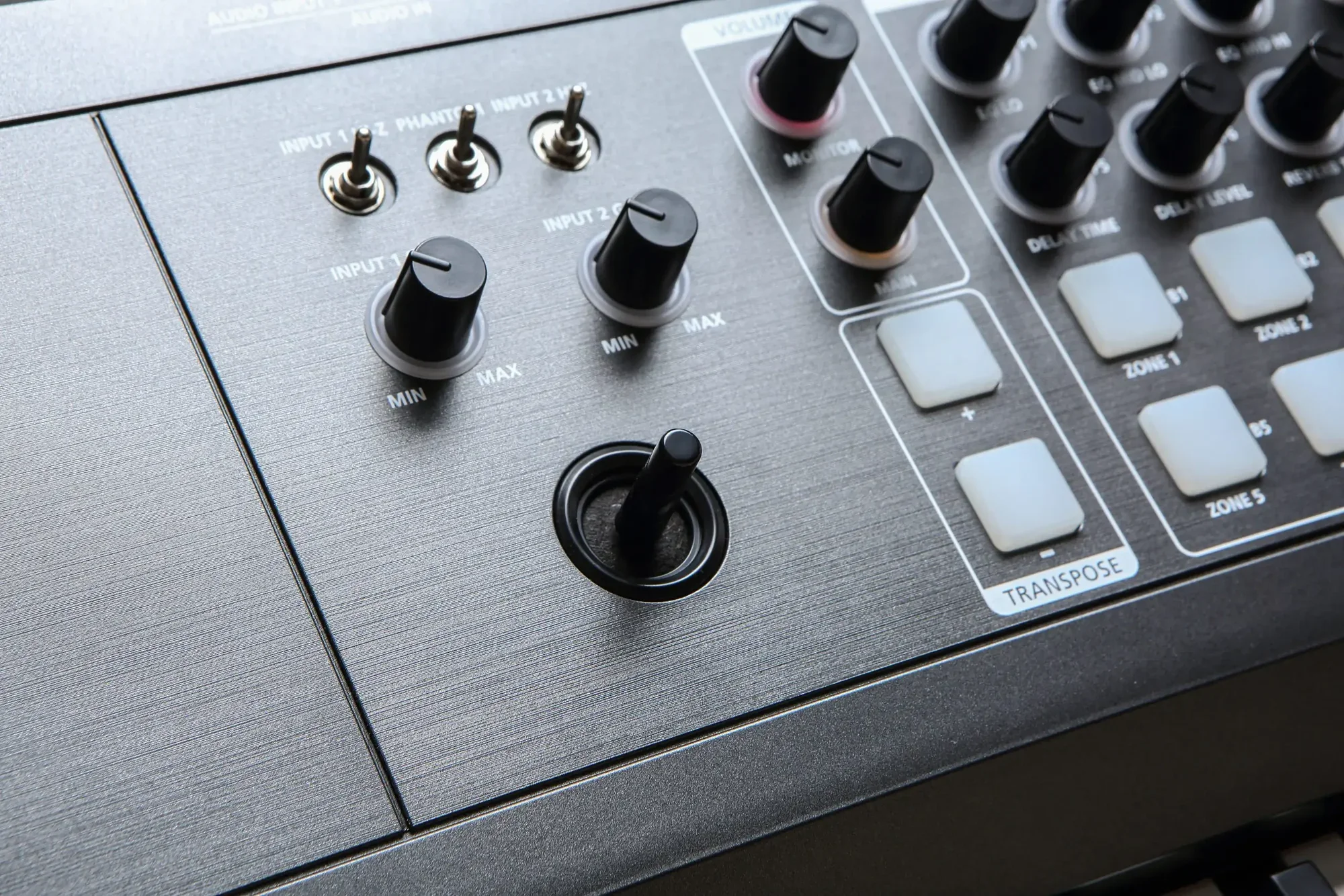

Controllers:
1 Pitch/Mod Joystick
8 Knobs
8 Buttons
2 Transpose switches
2 Switch pedal inputs; supports a single half-damper pedal (1 switch/sustain pedal is included; half-damper pedals sold separately)
1 Continuous Control Pedal Input (pedal sold separately)
Arpeggiator:
8 – Hybrid-Arpeggiators
System Sample Rate:
48kHz (max 192 kHz)
System Bit Rate:
48 bit (fixed point)

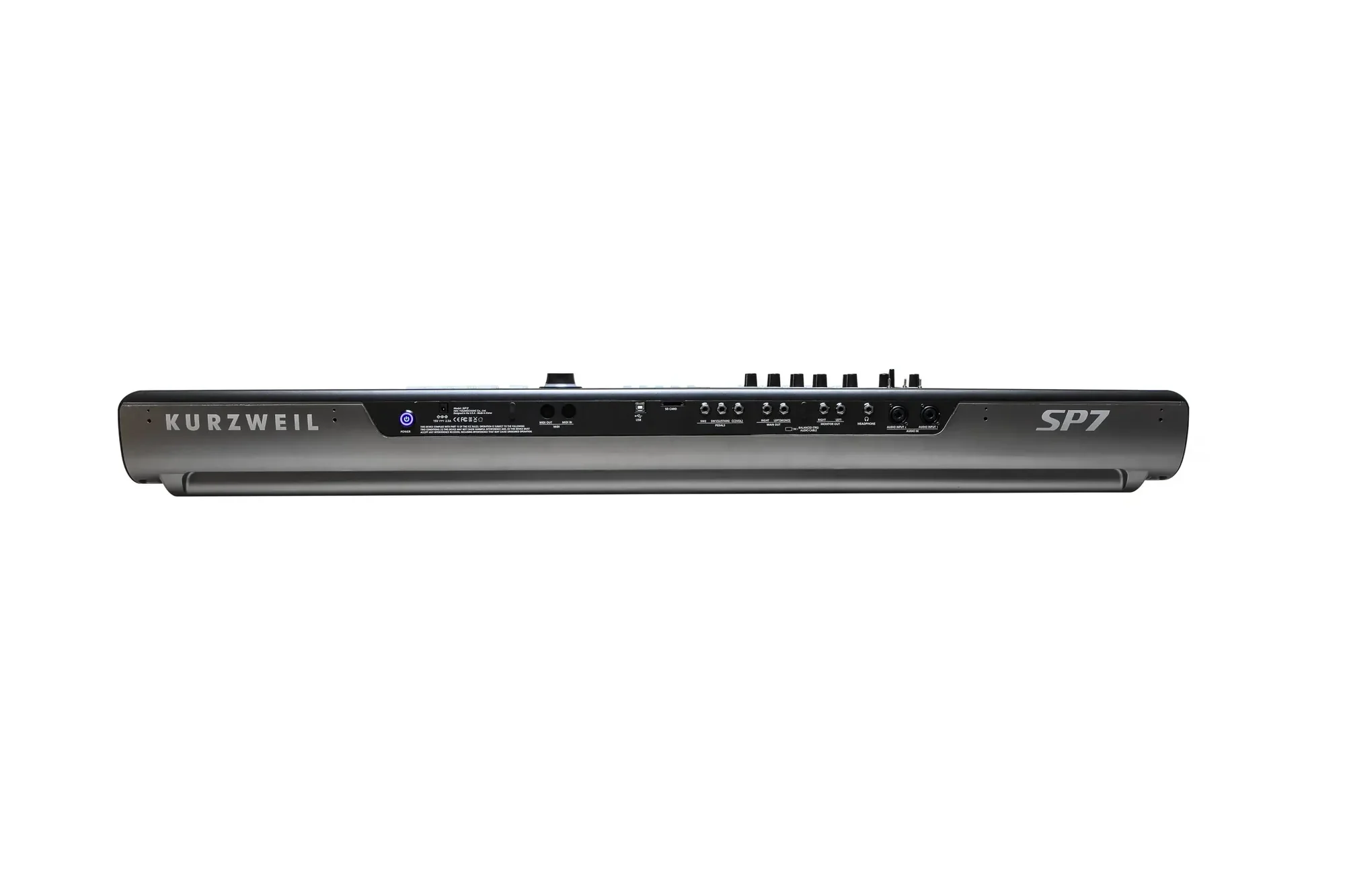

Analog Inputs:
2 XLR-1/4″ balanced combi
Analog Outputs:
Main: 2, 1/4″ TRS balanced
Monitor: 2, 1/4″ TRS balanced
Headphone:
1 back panel 1/4″ headphone output
MIDI:
In, Out
USB MIDI:
1 Type B port
USB Audio Interface:
2-In/2-Out; 24-bit/48kHz
Software Editor:
External Macro Synthesis Editor (coming soon)
OS Updates:
via USB (Engine firmware), via SD card (GUI firmware)
Accessories:
Included: power cable, switch pedal, USB cable, 1/4″ TRS cable
Sold separately: sheet music rack
Height:
5.8″ (14.8 cm)
Depth:
15.1″ (38.4 cm)
Length:
53.2″ (135 cm)
Weight:
27.6 lb (12.5 kg)
Power:
External 15VDC 2.5A Power Supply
